Overview
This package is designed to help users build the Rescorla-Wagner Model for Two-Alternative Forced Choice tasks (e.g. multi-armed bandit). Beginners can define models using simple if-else logic, making model construction more accessible.
How to cite
YuKi. (2025). binaryRL: Reinforcement Learning Tools for Two-Alternative Forced Choice Tasks. R package version 0.9.0. https://CRAN.R-project.org/package=binaryRL
Hu, M., & Liu, Z. (2025). binaryRL: A Package for Building Reinforcement Learning Models in R. Journal(7), 100-123. https://doi.org/
Installation
# Install the stable version from CRAN
install.packages("binaryRL")
# Install the latest version from GitHub
remotes::install_github("yuki-961004/binaryRL@*release")
# Load package
library(binaryRL)
# Obtain help document
?binaryRL
╔═════════════════════════╗
║ ╔----------╗ ║
║ | ██████╗ | ██╗ ║
| _) ║ | ██╔══██╗ | ██║ ║
__ \ | __ \ _` | __| | | ║ | ██████╔╝ | ██║ ║
| | | | | ( | | | | ║ | ██╔══██╗ | ██║ ║
_.__/ _| _| _| \__,_| _| \__, | ║ | ██║ ██║ | ███████╗ ║
____/ ║ | ╚═╝ ╚═╝ | ╚══════╝ ║
║ ╚----------╝ ║
╚═════════════════════════╝
Tutorial
In tasks with small, finite state sets (e.g. TAFC tasks in psychology), all states, actions, and their corresponding rewards could be recorded in tables.
- Sutton & Barto (2018) call this kind of scenario as the tabular case and the corresponding methods as tabular methods.
- The development and usage workflow of this R package adheres to the four stages (ten rules) recommended by Wilson & Collins (2019).

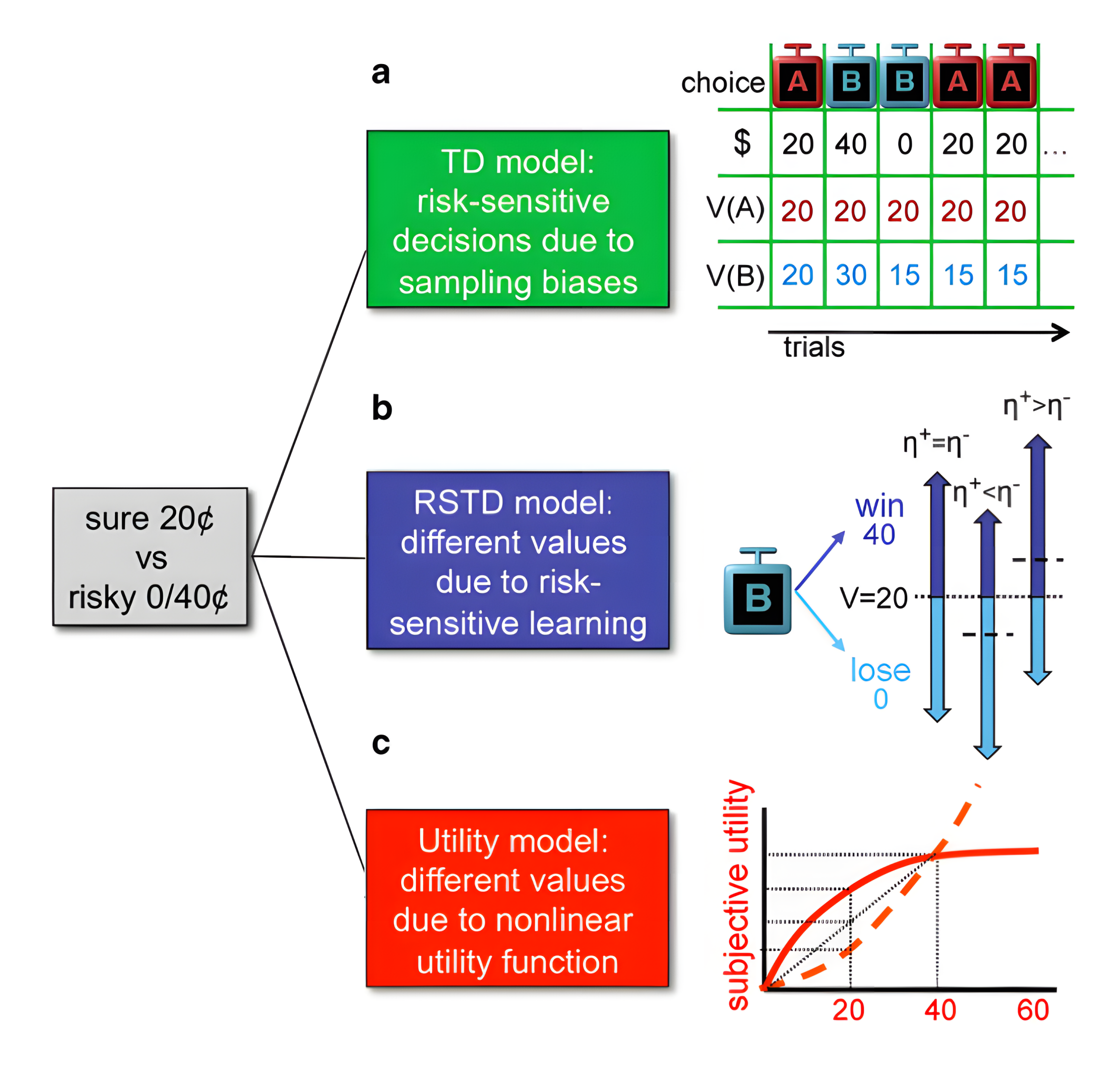

- The three basic models built into this R package are referenced from Niv et al. (2012).
- The example data used in this R package is an open data from Mason et. al. (2024)
Reference
Sutton, R. S., & Barto, A. G. (2018). Reinforcement Learning: An Introduction (2nd ed). MIT press.
Wilson, R. C., & Collins, A. G. (2019). Ten simple rules for the computational modeling of behavioral data. Elife, 8, e49547. https://doi.org/10.7554/eLife.49547
Niv, Y., Edlund, J. A., Dayan, P., & O’Doherty, J. P. (2012). Neural prediction errors reveal a risk-sensitive reinforcement-learning process in the human brain. Journal of Neuroscience, 32(2), 551-562. https://doi.org/10.1523/JNEUROSCI.5498-10.2012
Mason, A., Ludvig, E. A., Spetch, M. L., & Madan, C. R. (2024). Rare and extreme outcomes in risky choice. Psychonomic Bulletin & Review, 31(3), 1301-1308. https://doi.org/10.3758/s13423-023-02415-x
Example Data
head(binaryRL::Mason_2024_G2)| Subject | Block | Trial | L_choice | R_choice | L_reward | R_reward | Sub_Choose | - |
|---|---|---|---|---|---|---|---|---|
| 1 | 1 | 1 | A | B | 36 | 40 | A | … |
| 1 | 1 | 2 | B | A | 0 | 36 | B | … |
| 1 | 1 | 3 | C | D | -36 | -40 | C | … |
| 1 | 1 | 4 | D | C | 0 | -36 | D | … |
| … | … | … | … | … | … | … | … | … |
.
.
. ;.
.;
;;.
;.;;
;;;;.
;;;;;
;;;;;
..;;;;;...
':::::'
':`
Example Result
binaryRL::run_m(
mode = "replay",
data = binaryRL::Mason_2024_G2,
id = 1,
eta = 0.5, tau = 0.5,
n_params = 2, n_trials = 360
)| A | B | C | D | - | L_porb | R_prob | - | Rob_Choose | - | Reward | - | ACC | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 0 | 0 | 0 | … | 0.50 | 0.50 | … | A | … | 36 | … | 1 | … |
| 36 | 40 | 0 | 0 | … | 0.50 | 0.50 | … | B | … | 40 | … | 1 | … |
| 36 | 40 | 0 | -40 | … | 0.50 | 0.50 | … | D | … | -40 | … | 0 | … |
| 36 | 40 | -36 | -40 | … | 0.50 | 0.50 | … | C | … | -36 | … | 0 | … |
| … | … | … | … | … | … | … | … | … | … | … | … | … | … |
Estimation Methods
While this R package is primarily designed for constructing Reinforcement Learning (RL) models (with run_m() at its core), its key functions, rcv_d() and fit_p(), also serve as a versatile algorithmic library for fitting any black-box functions in parallel. Given that MAP extends MLE by leveraging the Expectation-Maximization (EM) algorithm, this package offers robust solutions for both of these powerful estimation methods. We also provide example code for three other estimation methods: MCMC, ABC, and RNN.
In general, MLE can lack robustness, MAP is time-consuming, and MCMC is often prohibitively slow. In contrast to these log-likelihood-based estimation methods, methods like ABC and RNN do not need to repeatedly run the black-box function. Instead, they use simulated data to train a direct mapping between behavioral outcomes and parameters. As a result, they offer a level of speed and robustness that log-likelihood methods cannot match. Based on our tests, We think ABC is the best estimation method.
Based on Log-Likelihood
Estimation methods like MLE, MAP, and MCMC are only viable when the log-likelihood of the black-box function is computable.
Maximum Likelihood Estimation (MLE)
Base R Optimization
- L-BFGS-B (from stats::optim)
Specialized External Optimization
- Simulated Annealing (GenSA::GenSA)
- Genetic Algorithm (GA::ga)
- Differential Evolution (DEoptim::DEoptim).
- Particle Swarm Optimization (pso::psoptim)
- Bayesian Optimization (mlrMBO::mbo)
- Covariance Matrix Adapting Evolutionary Strategy (cmaes::cma_es)
Optimization Library
- Nonlinear Optimization (nloptr::nloptr)
NOTE:
1. If you want to use an algorithm other than L-BFGS-B, you’ll need to install its corresponding R package.
2. This package supports parallel computation. When you set the nc argument in rcv_d() or fit_p() to a value greater than 1, calculations will run in parallel, meaning each participant’s parameter optimization happens simultaneously.
3. If you’ve defined a custom model, you must provide the names of your custom functions as a character vector to the funcs argument within rcv_d() or fit_p().
Maximum A Posteriori (MAP)
For more robust parameter estimates, the package supports Maximum A Posteriori (MAP) estimation via an EM-like algorithm (adapted from mfit). This approach leverages the entire group’s data to inform and regularize individual-level fits.
M-Step (Update Priors): Find the optimal parameter values for each subject individually and calculate the log-posterior using the prior distributions.
E-Step (Update Posterior): Update the prior distributions based on the optimal parameters obtained from the M-step, then repeat the M-step iteratively.
Note:
1. To enable MAP estimation, specify estimate = "MAP" in the rcv_d() or fit_p() function and provide a probability density function for each free parameter.
2. The fitting process forces a Normal distribution on all parameters except for the inverse temperature (make sure it is the last free parameter), which is given an Exponential prior. This may not always be appropriate.
Markov Chain Monte Carlo (MCMC)
For a full Bayesian analysis, you can perform Markov Chain Monte Carlo (MCMC) to characterize the entire posterior distribution, capturing a complete picture of parameter uncertainty.
-
LaplacesDemonprovides a convenient interface for performing MCMC on any black-box function. If you userstan, you would need to rewrite the entire MDP. The core functions ofbinaryRLare implemented inRcpp, which ensures that the package remains flexible and easy-to-use while running very efficiently. We provide an example code.
Note:
1. The only thing you need to care about is if you can accept how long the MCMC takes to run.
Bypass Log-Likelihood
When learning is no longer based on a visible value but on an invisible rule, the log-likelihood becomes incomputable, which requires an estimation method that bypass the log-likelihood.
Approximate Bayesian Computation (ABC)
-
abcworks by learning the mapping from input parameters to summary statistics. Once this mapping is established, it can be used to estimate the input parameters that likely produced a given set of summary statistics. We provide an example code.
Note:
1. While a wide range of metrics can serve as summary statistics, in this example code, we use the mean and standard deviation of the agent’s probability of making a risky choice.
Recurrent Neural Networks (RNN)
-
GRUandLSTMare architecture of RNN. They work by learning the mapping from input parameters to behavioral outcomes. Once this mapping is established, it can be used to estimate the input parameters that likely produced a given series of behavioral decisions. We provide an example code.
Note:
1. The behavioral outcomes can be either a single column (Sub_Choose) or the entire data table (L_choice, R_choice, L_reward, R_reward, Sub_Choose). More information will result in a slower training speed.
